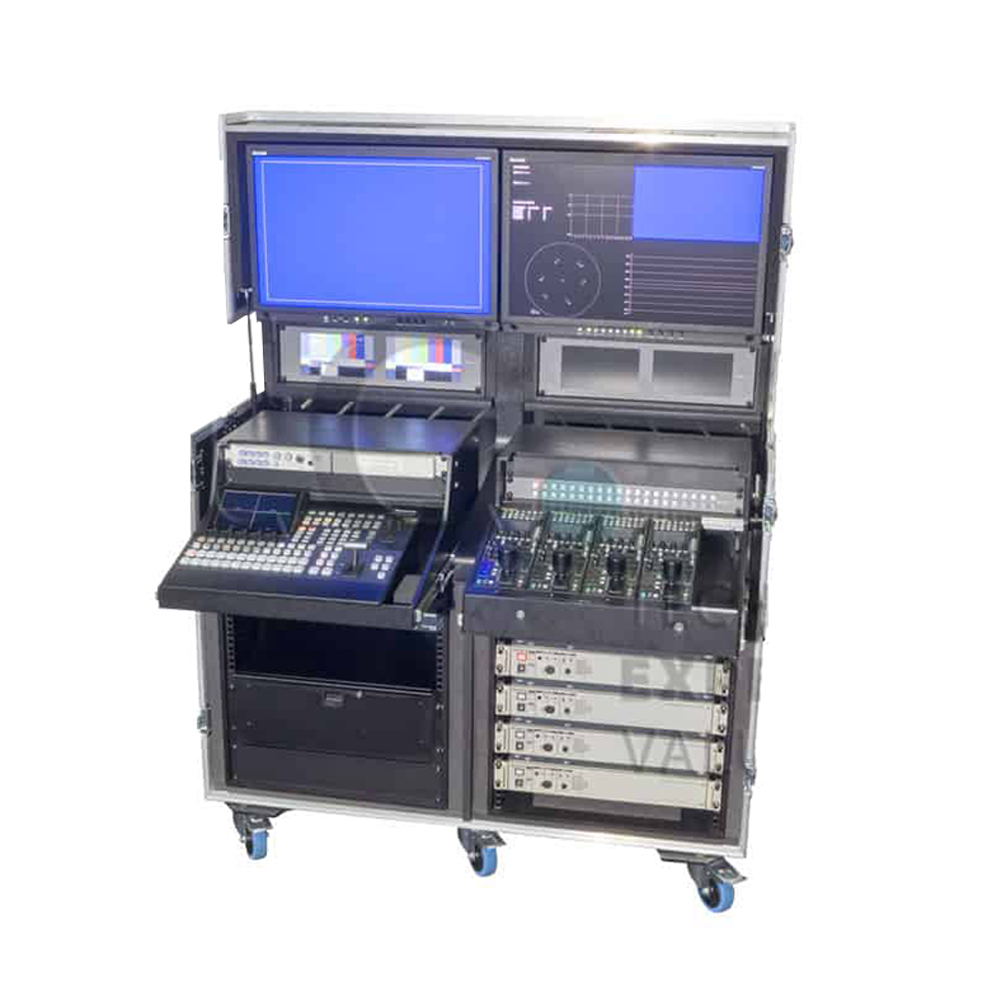

Compact HD Portable Production Unit




This compact HD PPU, carefully designed to fit in one flightcase which gives ease of access and occupies less floorspace. The unit is based upon Panasonic’s HS410 Vision Mixer which is paired with a Blackmagic Design 16×16 HD/SD SDI Matrix. Cameras, Graphics or Video source can be connected directly into the HS410 via 8 HD or SD SDI inputs via the matrix or 3 DVI-D inputs directly into the mixer. The PPU also includes an RTS Talkback System and if you need extra space, parts of the flightcase can be converted into useful table space.

If you’d like to speak to someone at ATC about AV hire or event production, just give us a call on 01827 301010 or 0207 940 5353.​


Panasonic HS410 Vision Mixer
12 x HD/SD SDI Inputs
3 x DVI (1920 x 1080) Inputs
2 x Component Inputs
2 x PGM HD SDI Outputs
6 x Selectable HD SDI Outputs (via matrix)
2 x 24” Monitors for: Program, Preview, Multi-Viewer & AUX Outputs
1 x 16×16 SD/HD SDI Matrix
8 x Tally Outputs (4 x Internal CCU)
4 x 8” HD Monitors for 4 x Cameras
1 x Evertz 5600 SPG/Master Clock
1 x GreenGo Comms System
